產品簡介：nyp內齒合高粘度轉子泵概述：

一、該轉子泵的工作原理：

具有內齒的驅動齒輪外轉子帶動內轉子在全封閉的泵體內作同方向轉動，泵體和前蓋的月牙板使吸入口和排出口隔開。轉動時，在吸入口形成負壓，液體被吸入，轉子將液體帶到排出口，受壓排出泵體，完成了液體的輸送。

二、該轉子泵的結構：

泵主要包括內外轉子，軸，泵體，前蓋，托架，密封，軸承等部分。密封有機械密封和填料密封兩種形式，對于高溫、高粘稠密度及腐蝕性較強的介質，選用填料密封。

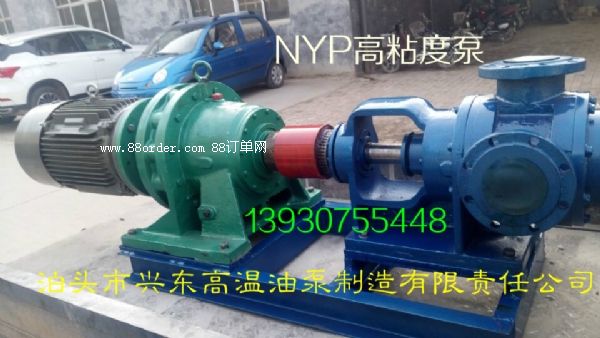

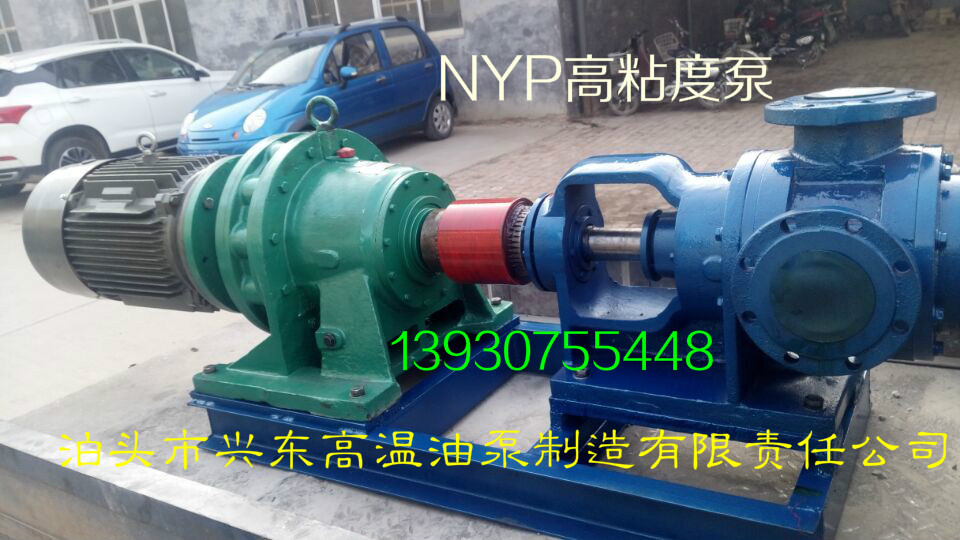

泵裝置由泵、電機和底座組成。傳動方式有兩種，分別是橋式和直聯式。

從主軸外伸端向泵看，為順時針旋轉。

三、nyp內齒合高粘度轉子泵優點：

◆輸送液體平穩，無脈動，振動小，噪音低。

◆有很強的自吸性能。

◆正確選用零件材料，可輸送多種有腐蝕性的介質,使用溫度可達200℃

◆內外轉子轉向相同，磨損小，使用壽命長。

◆泵的轉速與流量呈線性函數關系，可適當改變轉速來改變泵的流量。

◆特別適用高粘稠度介質的輸送。

nyp內齒合高粘度轉子泵是根據石油、化工、涂料等行業的需求，研制開發的新型容積式泵，由于該產品可選用不同的材質和其獨特的結構，因此被用于不同性質、不同粘度的介質輸送。

適用介質溫度：-10℃～200℃(nyp0.78和nyp2.3適用溫度為-10℃～80℃)

    介質粘度：1.0cst～300000cst(nyp0.78及nyp2.3的適用介質粘度為1.0cst～10000cst)

以下為該轉子泵的技術參數，供您參考：

型號

通徑mm

理論排量

l/100rev粘度

cst轉速

r/min壓差(mpa)連接形式0.40.60.81.0軸功率(kw)流量(l/min)nyp0.78150.782013900.17/9.30.23/9.00.28/8.80.32/8.6g1/2"6013900.18/9.50.24/9.20.28/9.00.33/8.920013900.31/10.40.35/10.20.39/10.00.43/9.960013900.39/10.40.44/10.30.48/10.30.52/10.220009100.23/6.80.27/6.80.30/6.80.33/6.760007200.24/5.40.31/6.10.30/6.80.40/6.8nyp2.3252.32014000.38/28.40.49/27.5  g1"6014000.59/29.20.65/28.8  20014000.61/30.00.72/29.6  60014000.92/31.90.96/31.7  20009100.61/19.90.68/19.7  60007200.77/16.320.83/16.2  nyp3.6403.62014500.69/46.70.94/45.91.18/451.44/43.4法蘭

flange6014500.81/47.51.09/46.71.37/45.91.57/44.720014501.06/49.71.31/49.21.56/48.81.79/47.360014501.45/49.91.61/49.61.77/49.31.93/4920009601.28/34.31.41/33.81.54/33.71.65/33.660006401.08/23.01.18/22.91.28/22.91.37/22.8200005831.22/20.51.24/20.41.25/20.41.38/20.3600004550.84/16.30.91/16.20.98/16.11.01/16nyp7.0

nyp7.0a

(原型號:

nyp3

nyp3a)407.02014501.36/98.11.8/962.0/94.72.4/93螺紋

thread6014501.45/991.9/972.2/96.42.6/9520014501.62/99.82.0/982.3/97.52.7/976009601.4/621.6/651.8/442.0/6420009601.8/672.0/662.3/652.6/6560006401.5/44.51.7/441.8/442.0/44200005831.6/40.51.9/402.1/402.2/40600004551.46/31.51.8/311.9/312.0/31nyp245024207201.8/1652.3/1612.8/1583.4/155法蘭

flange607202.0/1662.6/1643.1/1623.7/1582006101.9/1432.5/1413.0/1393.5/1366005412.1/1272.6/1253.0/1243.5/12220004752.2/1122.6/1112.9/1103.4/10960003572.0/852.3/842.6/832.9/83200003031.9/722.2/722.4/722.6/71600002281.6/541.8/542.0/542.3/54nyp52

nyp52a

(原型號:

nyp10

nyp10a)5052207204.3/3625.8/3556.9/3488.1/340螺紋

thread607204.7/3646.2/3587.3/3527.5/3462006104.6/3095.9/3046.9/3008.0/2946005414.9/2756.0/2716.8/2687.8/26420004755.0/2435.9/2386.6/2377.6/23560003574.1/1844.9/1825.3/1816.2/180200003033.8/1574.6/1565.1/1555.6/155600002283.1/1193.7/1184.0/1184.5/118nyp808080206155.2/4716.9/4618.5/45110.0/433法蘭

flange606155.5/4747.2/4658.8/45710.5/4482005445.7/4217.2/4148.6/40810.1/4016004796.0/3727.3/3678.5/3629.8/35620004176.5/3267.7/3228.9/31910.1/31560003055.6/2396.6/2377.5/3268.4/233200002285.5/1806.4/1796.9/1787.7/177600001885.5/1496.1/1496.7/1497.2/148nyp111

nyp111a

(原型號:

nyp30

nyp30a)80111.4206156.7/6609.2/64711.2/63413.6/622法蘭

flange606156.9/6649.4/65211.5/64213.9/6312005447.1/5899.3/58011.0/57313.2/5636004797.3/5219.5/51411.1/50813.1/50220004177.7/4559.7/45011.0/44712.7/44260003056.9/3358.4/3329.4/33110.6/328200002286.3/2517.5/2508.2/2499.2/248600001886.2/2097.1/2087.6/2088.5/207nyp160100160206008.9/93012.1/91615.3/90217.5/888法蘭

flange606009.4/93512.6/92215.8/91019.0/89820055012.3/86615.3/85918.3/85221.3/84560048010.2/75412.8/74715.4/74018.0/73720003559.1/56011.1/55613/55215.1/548600031910.0/50511.7/50213.5/50015.2/497nyp220125220204308.8/90211.9/88015.0/85818.0/836法蘭

flange604309.0/90912.0/89015.0/87118.0/8522003558.5/75311.1/73913.7/72616.3/7136003209.4/68211.8/67114.1/66016.5/64920002549.1/54411.0/53713.0/53015.1/523600024410.1/48311.9/47813.6/47315.4/468200001609.1/34710.5/34511.9/34313.3/341600001178.4/2569.4/25510.4/25411.4/253nyp3201253202043013.0/130618.0/127022.0/123526.0/1200法蘭

flange6043013.0/131618.5/128522.0/125526.5/122520035511.8/109115.5/106819.1/104622.8/102460032013.2/98716.5/96819.7/95022.9/932200028414.2/88117.4/86720.6/85423.8/841600022213.7/69316.2/68418.7/67521.2/6662000016813.2/52915.3/52517.3/52219.4/5196000012512.0/39713.7/39615.3/39516.9/394nyp6501506502031519.0/192126.0/185733.0/1794 法蘭

flange6031520.0/194026.4/188633.2/1832 20028417.9/175624.0/171130.4/1666 60025317.6/157222.7/153428.9/1500 200019615.7/122520.6/120124.5/1176 600016016.0/100819.8/99322.3/978 2000011713.6/74516.5/73819.2/731 6000010015.0/64517.2/64319.5/640 nyp727

(原型號:

nyp50)1507272031521.5/213529.4/205837.3/1980 法蘭

flange6031522.4/215729.8/209037.3/2026 20028019.6/192826.7/187433.5/1820 60024519.6/169625.1/165231.2/1611 200020018.7/139423.3/136328.5/1334 600017019.2/119523.3/117527.9/1155 2000012517.0/88820.1/87823.3/868 6000010016.8/72019.5/71722.3/713 nyp167020016702025038.0/385252.0/369066.0/3529 法蘭

flange6025040.0/390054.0/376368.0/3626 20022537.5/353550.0/342462.5/3313 60019537.0/307948.0/299058.6/2900 200016035.0/254744.0/248553.0/2422 600013534.6/217742.0/213850.0/2100 2000011235.0/183041.5/181048.0/1790 600008536.0/140535.7/140040.6/1392
