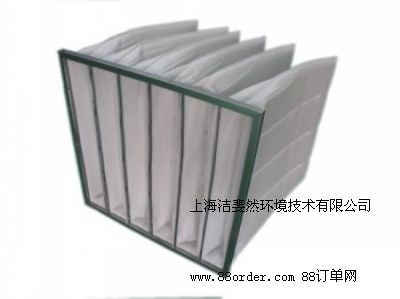

Super Synthetic Fibre Pockets Filter，Class M6 to F8

超高性能化纖袋式過濾器

Advantages 特點：

• Comprehensive range of standard sizes.

眾多標準尺寸產品可供選擇

• Robust metal header frame

堅固的金屬外框

• Controlled media spacing

濾袋間距可控

• More stable filtration efficiency, higher dust capacity, lower pressure drop

更穩定的過濾效率，更高的容塵量，更低的壓損

Application: Air conditioning applications.

應用：中央空調通風系統

Specification 性能參數

Type: Multi pocket Pockets filter.

類型：多袋式過濾器

Media: Synthetic fibre.

濾材：合成纖維

Frame: Galvanised steel/Aluminum.

外框材質：鍍鋅鋼板/鋁合金

EN779:2011 filter class:M6(EN779), 80%≥E≥60% @0.4um

                                            F7(EN779), 90%≥E≥80% @0.4um

                                            F8(EN779), 95%≥E≥90% @0.4um

Recommended final pressure drop: 500 Pa.

建議終阻力：500Pa

Temperature: 90ºC maximum in continuous service.

連續穩定運行溫度：不高于90ºC

Note：Pressure drop +/-15%

             Odd sizes available

注：阻力 +/-15%

        可定制任意非標尺寸
